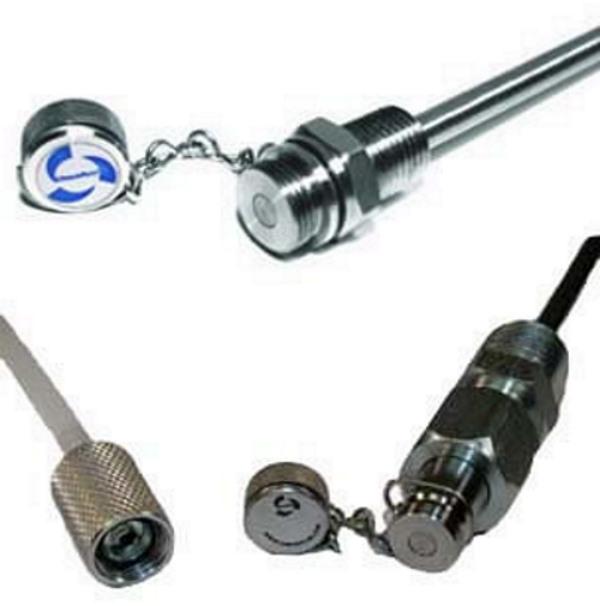

Sample Valve Type L, High flow, 1/4 NPTF, 12" ss tube, fixed - CF-L14NTR12

Sample Valve Type L, High flow, 1/4 NPTF

High flow design for sampling high viscosity oils at low pressures

• O-ring sealed to withstand 27 in Hg (0.9 bar) system working pressure

• Easy to clean flat face design

• Extra compact and sealed cap

Features

• Draw only the active oil in gearboxes and reservoirs for quick and accurate analysis
• Sample VG 32 to VG 1500 gear oils without shutting down saving up to 90% of the time spent sampling
• For VG 460 + or colder temperatures we recommend a 5/16" OD tube to help reduce sampling time.
• Samples up to seven times faster than B 16 x 2 series
• Installs compactly into almost any port without special tools or multiple adapters
• Choose to remote mount the valve for added safety or convenience
• Rely on new corrosion resistant nickel plating to last up to five times more than industry standards
• Top up fluids or replace sampled fluid cleanly and quickly using new probe options

Specifications

• Sampling Pressure: 0 psi - 125 psi (0 - 0.86 MPa)
• Working pressure: 1000 psi (6.89 MPa)
• Burst Pressure: 10 000 psi (68.9 MPa)
• Seal Material: Viton (FKM)
• Valve Material: Carbon steel, stainless steel
• Valve Plating: Zinc Nickel
