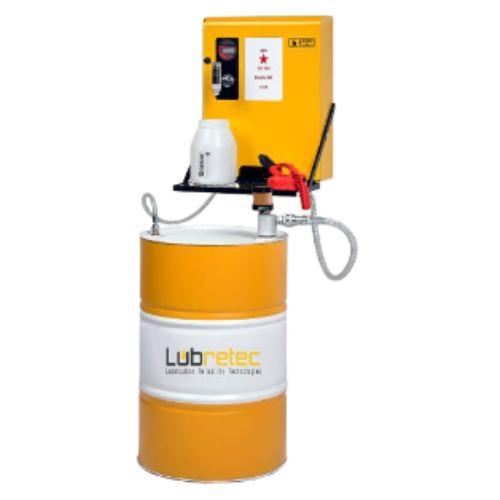

Lustor Wall Mounted Unit, 10µm, 3:1 pump - LR-LSW1003
Lustor Wall Mounted Unit, 10µm large filter. 3:1 pump
Depending on the oil consumption in your plant, the high quality Wall Mounted System (no reservoir) might be a good option when you want to achieve Best Practice in Lubrication Management. A colour-coded system, fully sealed, that ensures clean, safe, onsite dispensing.
The System has the same great oil management features as the 125, 250 and 500 liter units, except it draws the lubricant directly out of the suppliers barrels.
• System dimension: (W) 700 mm x (H) 800 mm.
• System weight: 43 kg
• The Lustor System conforms to EU Machine Directory 2006/EC EN ISO 12100:2010 and is CE marked and compliant.
The Wall Mounted System in Operation
Since wall mounted units do not have a reservoir (they connect directly to a pail, tote or drum), there are only two modes of operation: Dispense and Recirculate.
Dispense Mode
To dispense oil from the Lustor wall mounted system, position ball handle to “Dispense” and place an OilSafe container under the dispensing tap.
Recirculation Mode
This operation allows off-line filtration or recirculation of the oil in the pail, tote or drum. The pump will circulate the oil through the filter to improve oil cleanliness.
Position ball handle to “Recirculate”.
Duration of recirculation will vary on oil level and oil type (heavier oils pump at slower flow rates).
A typical rule is to turn-over all the oil in the pail, tote or drum 2-3 times.
Optional Upgrades
• Custom Oil ID Label for Front Panel
• 3 or 20 Micron Filters
• Pneumatic 5:1 Pump
• Lustor Spill Containment
• Colourized Quick Connects
