Hub Kit with 1.25" NPT threads, 4 SS Plugs, Standard Flow Sample Valve, 12" SS Pilot Tube - LA-HUB125NPTSTD
Hub Kit with 1.25" NPT threads, 4 SS Plugs, Standard Flow Sample Valve, 12" SS Pilot Tube

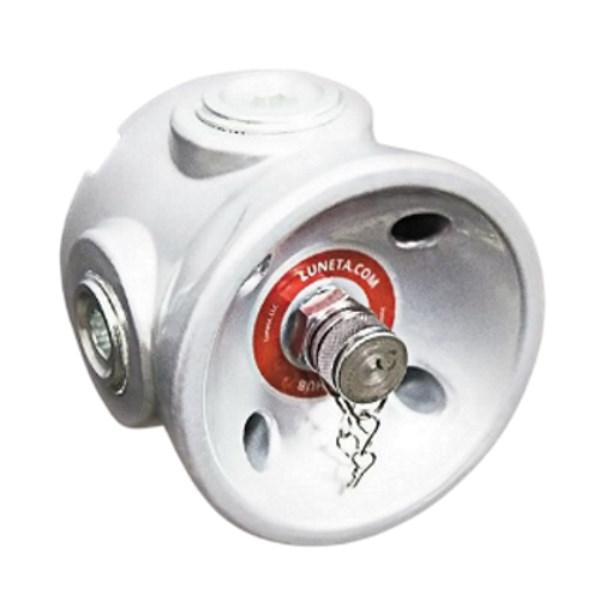

The Hub’s design turns one port into five.
Eliminate the need to build elaborate assemblies of elbows, crosses and T’s just because there is only one port on your machine. The Hub provides two lateral 1” NPT ports, two lateral ¾” NPT ports, and one central ¼” NPT port that is designed primarily for a sampling valve. The central port is shielded to protect the sampling valve from accidental impacts and debris. The lateral ports can be used to attach drain valves, quick connects, filter carts, bowls, columns and sight glasses.
The Hub is adjustable every 45° so an optimal orientation can be achieved during installation. The Hub is best used in conjunction with Luneta’s Column and Bowl. The Hub ships with a sampling valve, stainless steel pilot tube and four steel plugs to seal any unused ports.

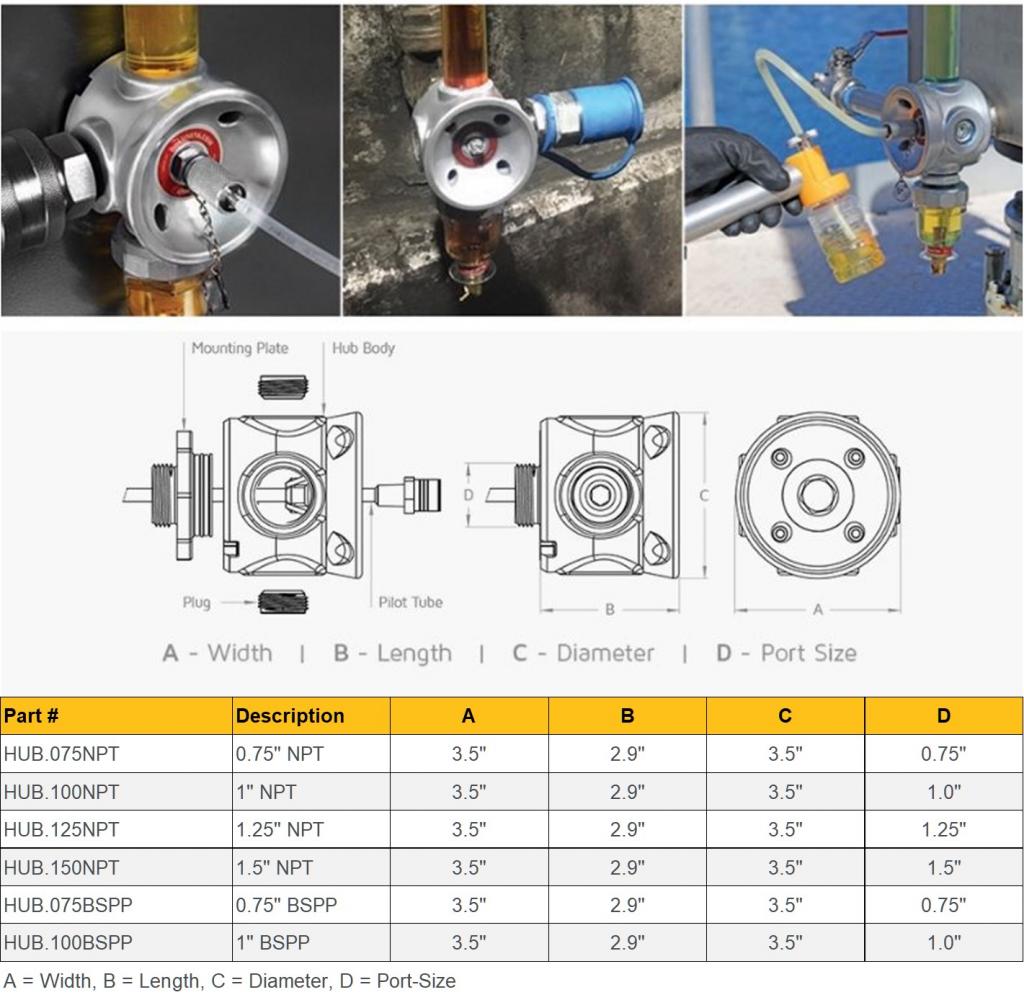

Available Male Thread Sizes:
• NPT 1/2”, 3/4”, 1”, 1 1/4” and 1-1/2”
• BSPP 1/2”, 3/4” and 1”
Specifications:
| Shipping Weight: | 3.5 lbs. (for qty. 1) |
| Recommended Temp. Range: | -13°F to +400°F (-10.6?C to +204?C) |
| Recommended PSI: | 500 psi working and 125 psi for sampling |
| Body Material: | Heavy-duty powder-coated cast aluminum and zinc plated steel |
| Pilot Tube: | 1/4" Stainless steel, 12" long |
| Sample Port: | High flow, easy access with shielded design |
| Easy Install: | Hub Body is easily attached with supplied bolts and can be adjusted every 45-degress to achieve optimal orientation |
| Lateral Ports: | (2) 1" NPT and (2) 3/4" NPT, Includes (4) low profile plugs for sealing lateral ports when not in use and installation hex key is included |
| Lateral Ports | (4) threaded lateral ports providing versatility for machine condition monitoring attachments like BS&W bowls and quick connects for filter carts |
| Pilot tube | Large diameter 12" pilot tube for high viscosity sampling |
