Pod with M33x1.5, Magnet, Fe Corrosion Indic. - LA-CMPODM3315

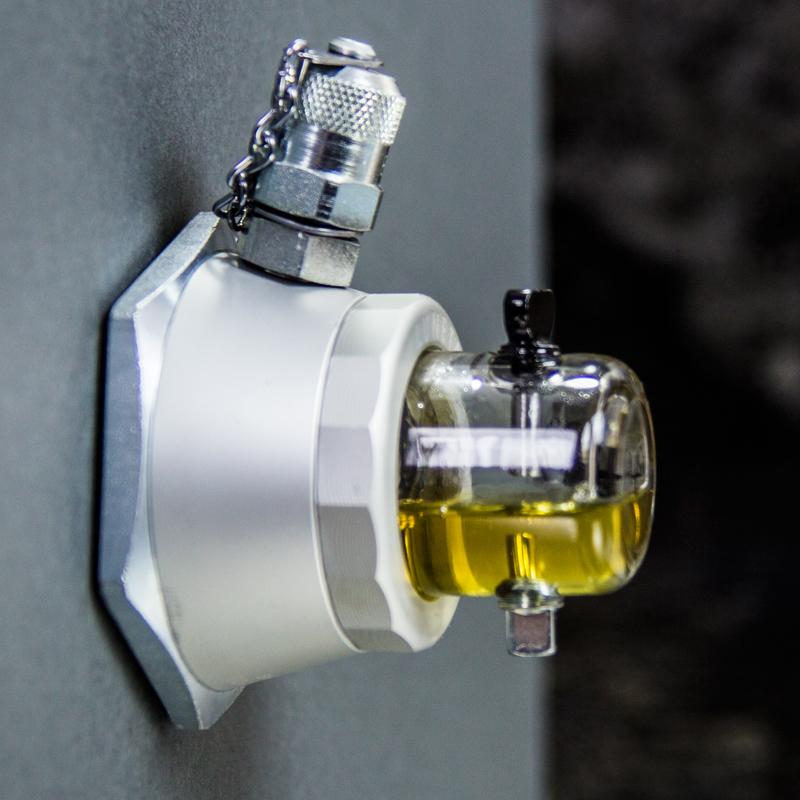

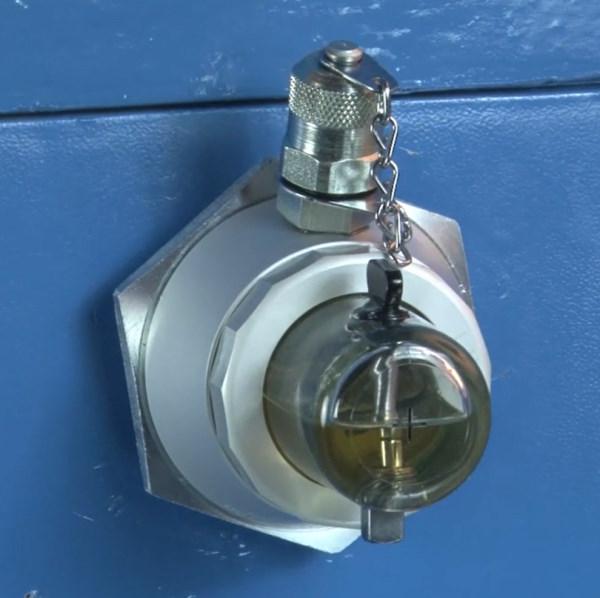

Condition Monitoring Pod® (CMP®) with M33x1.5, Magnet, Fe Corrosion Indic.
The Condition Monitoring Pod® (CMP®) is a patented multi-parameter inspection tool that revolutionizes daily one-minute inspections. Made from ultra-durable, crystal-clear, and chemically resistant Tritan™ material, the CMP provides an almost 360° view of the oil. The flat front face is designed for easy use with a pen light or camera for detailed inspection and analysis.
It features a visible corrosion indicator that alerts you when the oil’s chemistry changes, signaling potential metal corrosion. The CMP also includes a magnetic plug that captures and displays ferrous wear debris. Both the corrosion indicator and magnetic plug are removable for in-depth analysis, thanks to a rotatable sight glass.

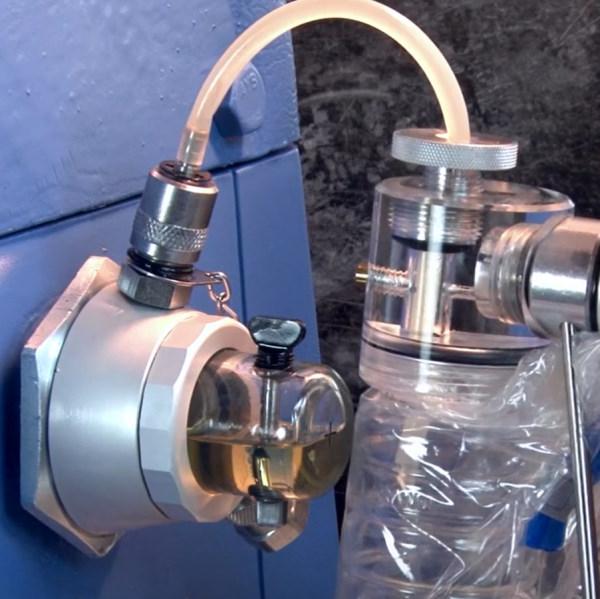

If lab testing is required, the CMP has a built-in sampling valve with a pilot tube for live-zone oil sampling.
Specifications
| Application: | Oil level ports |
| Dimensions: | 2,9"L x 2,75"W x 4"H |
| Shipping Weight: | 1,2 lbs |
| Rec. Temp. Range: | -40°F to 200°F (-40°C to 93°C) |
| Rec. Pressure | Low pressure applications |
| Sampling/Drain Valves: | Standard flow sampling valve (M16x2) |

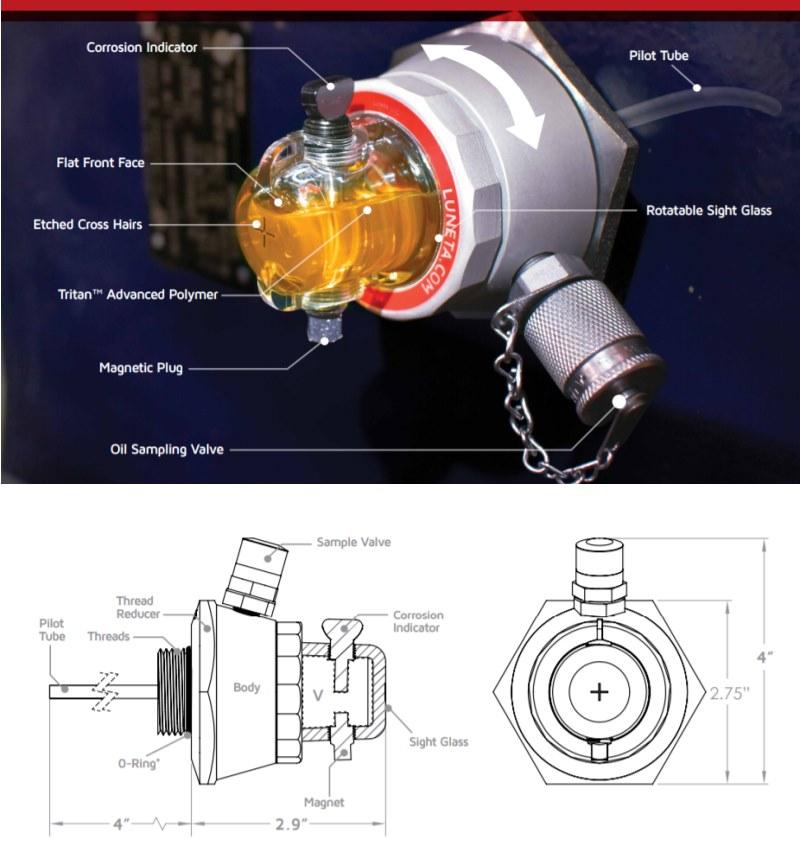

Features
| Oil Sampling Port | Sample oil without shutting down the machine |
| Quick Access Point | Quick syringe sampling and hand-held instrument tests |
| Corrosion indicator w. O-Ring | Detects abnormal corrosion and varnish conditions |
| New Tritan™ Sight Glass | 4x stronger and chemically resistant |
| Etched Cross Hair | Quick of level measurement |
| Magnetic Plug with O-Ring | Easy-to-remove and view |
| Adjustable Nut | Rotate or remove only the sight glass (for cleaning) |
