Sample valve, Push button pressurized, 1/8" NPTF - CF-KP18N
€ 38.32 Excl. VAT
Sample valve, Push button pressurized, 1/8" NPTF
The KP Pushbutton allows for easy sampling of pressurized systems by pushing a button. The push button style eliminates the need for probes and reduces the chance for cross contamination. To sample, hold the bottle under the spout of the button and then push.

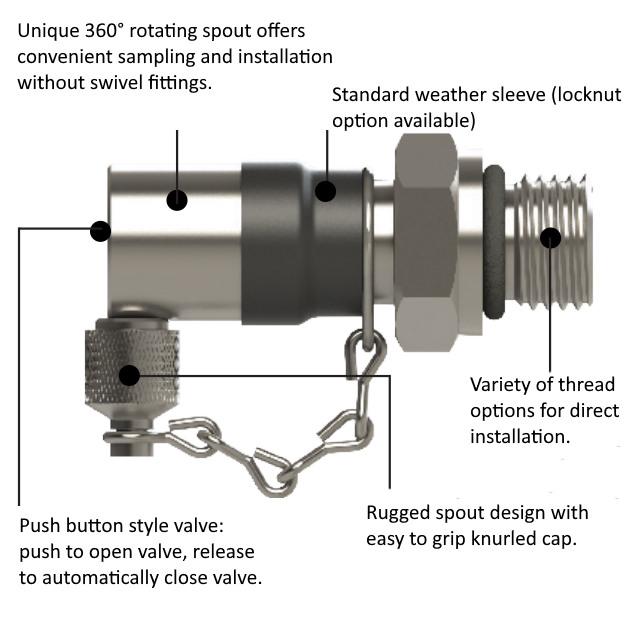

Features
• Easy push to open - release to close action.
• Cost effective - no probes needed
• Unique 360° rotating spout offers convenient sampling and installation without swivel fittings
• Corrosion resistant stainless steel chain and clip with no exposed springs
• Rugged spout design with easy to grip knurled cap
• Zinc-nickel plating offers over 5 times the industry standard corrosion protection
• Reliable: Dual sealed design independently tested at 7800 psi for one million cycles
• Patented elastomeric valve seals vacuum tight at 27 in Hg
Specifications
• Sampling pressure: 5-750 psi (0.03 - 5.17 MPa)
• Working pressure: 6000 psi (41.4 MPa)
• Burst Pressure: 24000 psi (165.5 MPa)
• Seal Material: Nitrile (Buna N), Viton (FKM), Neoprene (CR)
• Valve Material: Carbon steel/Brass/Stainless Steel 316
• Valve Plating: Zinc Nickel
Benefits
• No probes needed
• Low purge volume
• Patented elastomeric vacuum tight seals
• Automatic valve shut off
• Remote access available
• Reliable: dual sealed design independently tested at 7800 psi for one million cycles
• Locknut available for extra protection against high vibration
• Silicone heat protection pad also available
• Sampling range of 5 - 750 psi (0.03 - 5.17 MPa)
